Turbocharger, Garrett GT28RS (aka GT2860RS), .92 A/R T3 Int. W/G, 6 Bolt (Not RB25DET! ) Exit

Quantity in Basket: None
Code: GRT-TBO-J51
Price: $999.00
Shipping Weight: 3.00 pounds

Quantity:

Turbocharger, Garrett GT28RS (aka GT2860RS), .92 A/R T3 Int. W/G, 6 Bolt (Not RB25DET! ) Exit



Product Description:

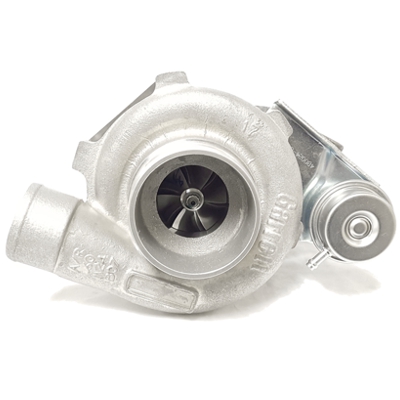

    Garrett GT28RS (aka GT2860RS) with .92 A/R T3 internal wastegate, 6 bolt (not RB25DET!) exit turbine housing.

    Dual Ball Bearing GT28RS turbo is great for small displacement engines up to 2.2L and has the ultimate spool up time compared to other units. This turbo has a flow capacity of about 350HP.

    Note: This turbine housing bolt pattern looks similar to, but is different than the Nissan RB25DET bolt pattern. The RB25DET series turbos can be found here.
Product Specifications:
  • Compressor Wheel Exducer: 60 mm
  • Compressor Wheel Trim: 62
  • Turbine Wheel Exducer: 53.85 mm
  • Turbine Wheel Trim: 76 trim
Coolant (Water) & Oil Fittings, Flanges, and Components Solutions: Compressor & Turbine Maps: Applicable Garrett Part Numbers:
  • 836026-5009S
  • 836026-5010S
