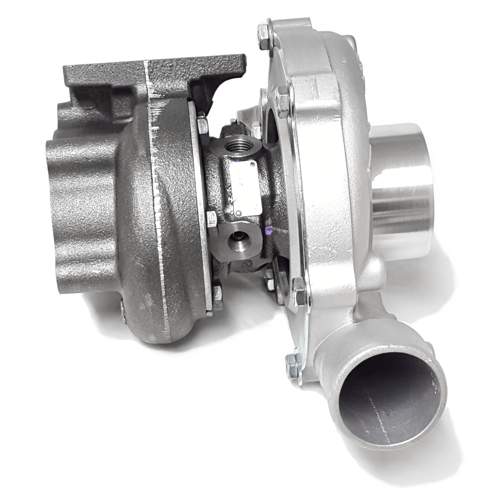

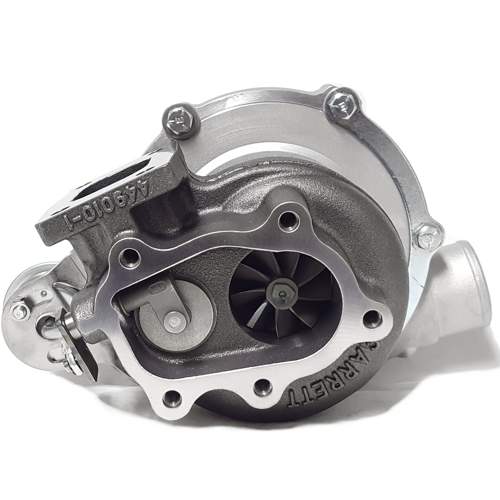

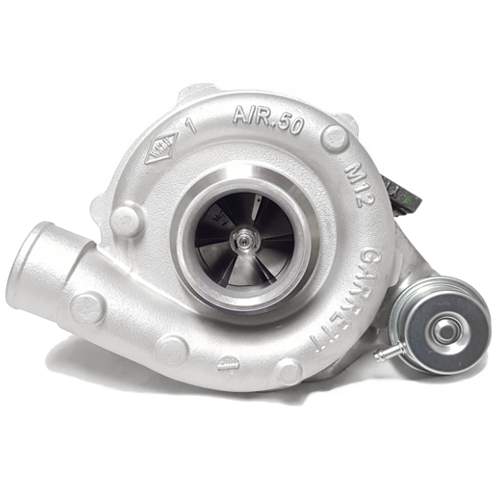

Turbocharger, Garrett GT2971R, E Frame Comp Hsg, 2.75" in/ 2' Out w/ 90 trim .86 A/R T25 Int. W/G

Quantity in Basket: None
Code: GRT-TBO-K60
Price: $1,365.00
Shipping Weight: 3.00 pounds

Quantity:


Optional Checkbox: 4" inlet compressor housing
Turbocharger, Garrett GT2971R, E Frame Comp Hsg, 2.75



Product Description:
    Dual Ball Bearing GT2971R high flow E frame 2.75" in/ 2" out turbo assembly with a 90 Trim .86 A/R T25 internal wastegate (14 PSI) style turbine housing.

    This turbo is great for small displacement engines up to 2.2L and has the ultimate spool up time compared to other units. This turbo has a flow capacity of about 450HP.
Product Features:
  • Genuine Garrett GT Aero compressor wheel
  • Genuine Garrett GT Inconel turbine wheel
  • Dual ball bearing CHRA rotating assembly
Product Specifications:
  • Compressor Wheel Inducer: 53.1mm
  • Compressor Wheel Exducer: 71mm
  • Compressor Wheel Trim: 56
  • Turbine Wheel Inducer: 56.5mm
  • Turbine Wheel Exducer: 52mm
  • Turbine Wheel Trim: 90
Coolant (Water) & Oil Fittings, Flanges, and Components Solutions: Garrett Part Numbers:
  • 836027-5002S
  • 700382-5020S
