Catalog Home > Turbos & Housings > Garrett GT - Ball Bearing > GT2871R With Special Housings > GT2871R w/ T25

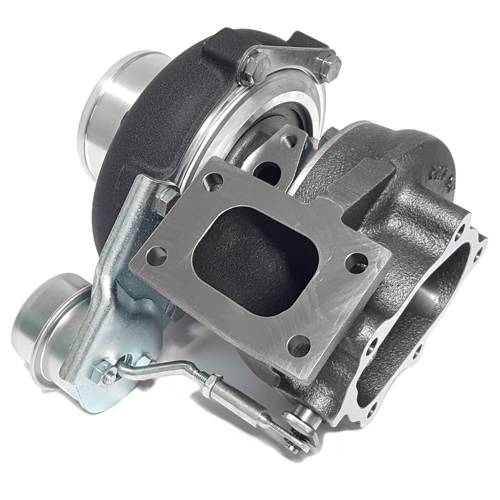

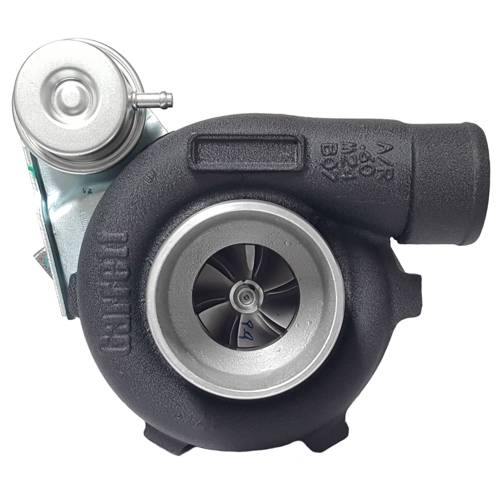

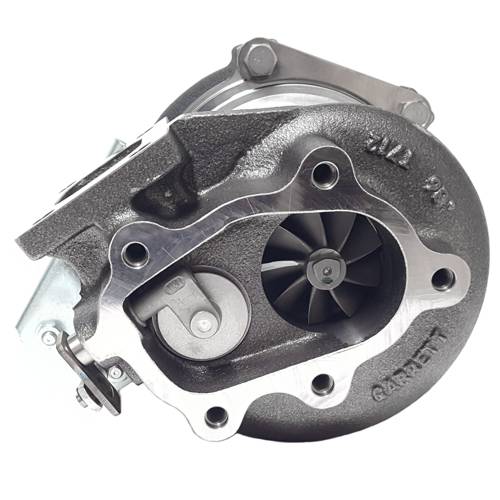

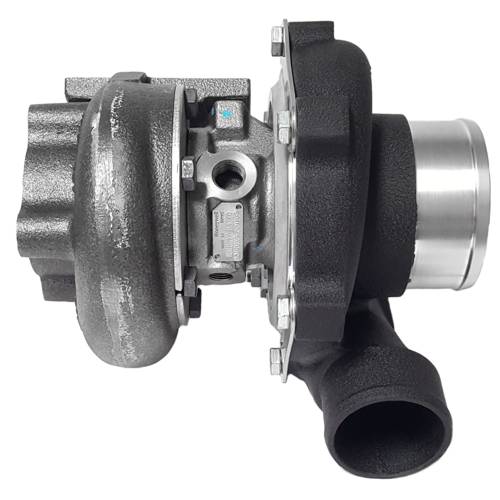

Turbocharger, Garrett GT2871R, Black, 56 Trim, .86 A/R, T25, 5 Bolt Int. WG.

Quantity in Basket: None
Code: GRT-TBO-M18
Price: $1,232.00
Shipping Weight: 3.00 pounds

Quantity:

Turbocharger, Garrett GT2871R, Black, 56 Trim, .86 A/R, T25, 5 Bolt Int. WG.


Product Description:
    BLACK Garrett GT2871R dual ball bearing turbocharger with a .86 A/R T25 5 bolt internal wastegate (1 bar actuator) turbine housing.

    Dual Ball Bearing GT2871R turbo is great for small displacement engines up to 2.2L and has the ultimate spool up time compared to other units. This turbo has a flow capacity of about 400HP.
Product Specifications:
  • Compressor Wheel Exducer: 71mm
  • Compressor Wheel Inducer: 53mm
  • Compressor Wheel Trim: 56
  • Turbine Wheel Inducer: 54mm
  • Turbine Wheel Exducer: 47mm
  • Turbine Wheel Trim: 76
Coolant (Water) & Oil Fittings, Flanges, and Components Solutions: Compressor & Turbine Maps:
Applicable Garrett Part Numbers:
  • 836026-5020S
  • 743347-5002S
