Catalog Home > Turbos & Housings > Garrett GTX Gen2 > Garrett GTX2867R Gen2 Variants

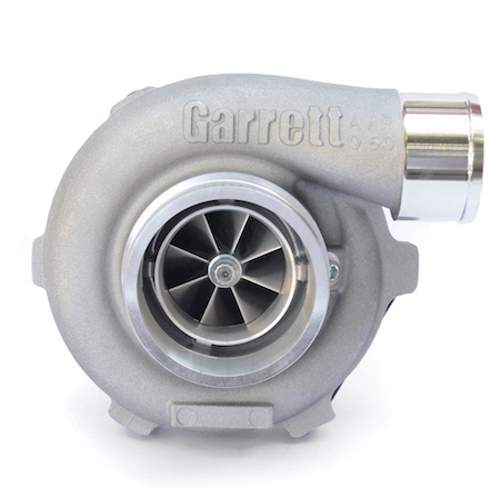

Supercore, Garrett, Gen2 GTX2867R, P/N: 849894-5002S

Quantity in Basket: None
Code: GRT-TBO-M42
Price: $1,723.02
Shipping Weight: 3.00 pounds

PRODUCT DESCRIPTION:

Garrett GEN2 GTX2867R dual ball bearing SuperCore (P/N: 849894-5002S ) with ultra high flow Gen2 compressor wheel. NO TURBINE HOUSING (Supercore). Hose connection compressor housing. Advanced GEN2 billet compressor wheel capable of 550HP! PRODUCT FEATURES:

Advanced aerodynamics & ultra high flow Garrett GTX GEN2 compressor wheel
Forged billet aluminum compressor wheel
Dual ball bearing CHRA rotating assembly

PRODUCT SPECIFICATIONS:

Compressor Wheel Inducer: 50mm
Compressor Wheel Exducer: 67mm
Compressor Wheel Trim: 55
Compressor Housing A/R: 0.60
Turbine Wheel Inducer: 54mm
Turbine Wheel Exducer: 47mm
Turbine Wheel Trim: 76

COOLANT (WATER) & OIL FITTINGS, FLANGES, AND COMPONENTS SOLUTIONS:

Coolant - Water Options (Requires 2 units): 14mm Coolant Fitting & Lines
Oil feed options: -4 AN with built-in Restrictor (Product Code: ATP-OIL-021)
Oil drain flange: Product Code: ATP-FLA-010
Oil drain gasket: Product Code: GRT-GSK-008

COMPRESSOR & TURBINE MAPS:

APPLICABLE GARRETT PART NUMBERS:

Supercore P/N: 849894-5002S
