Garrett G Series Resource Page
>
G25-660

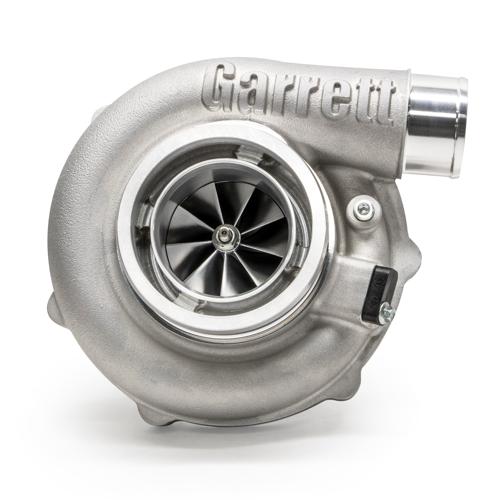

Supercore, Garrett G25-660, STANDARD ROTATION, Turbo W/O Turbine Housing, P/N: 858161-5003S
Quantity in Basket:
None
Code:
GRT-TBO-N17
Price:
$1,961.68
Shipping Weight:
3.00 pounds
Product Description:
The Garrett G-Series G25-660 advanced small frame ball bearing turbocharger. 660HP from a small frame package!
- Ultra High Flow G-Series Compressor Wheel
- Evolutionary aero G-Series Turbine Wheel made from high heat resistance Mar-M Alloy, 1050 Celsius Rating
Product Specifications:
- Compressor Wheel Inducer: 54mm
- Compressor Wheel Exducer: 67mm
- Compressor Wheel Trim: 65
- Compressor Housing Inlet: 3 Inch Diameter
- Compressor Housing Outlet: 2 Inch Diameter
- Compressor Housing A/R: .70
- Turbine Wheel Inducer: 54mm
- Turbine Wheel Exducer: 49mm
- Turbine Wheel Trim: 84
Oil Fittings, Flanges, and Components Solutions:
Compressor & Turbine Maps:
Garrett Part Number:
- 858161-5003S
- 871389-5010S
- 871389-5011S
- 877895-5002S
- 877895-5005S
- 877895-5006S
