Catalog Home > Turbos & Housings > Garrett GBC - Garrett Boost Club Line > GBC3537

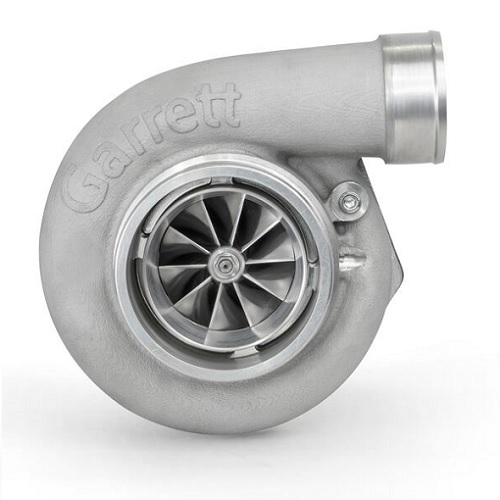

GARRETT Club Line GBC35-700 SuperCore, Turbo Without Turbine Housing, WG Garrett P/N: 913840-5001S

Quantity in Basket: None
Code: GRT-TBO-R65
Price: $839.95
Shipping Weight: 5.00 pounds

Quantity:

GARRETT Club Line GBC35-700 SuperCore, Turbo Without Turbine Housing, WG Garrett P/N: 913840-5001S

Product Description:
    GARRETT Club Line GBC35-700 (58mm Comp Wheel) Turbo Without Turbine Housing, WG Garrett P/N: 913840-5001S

Product Features:
  • The Garrett GBC35-700 turbocharger is a high performance journal bearing product in a cost effective price range. GBC combines modern, high flowing aerodynamics with a robust journal bearing rotating group to make a powerful and affordable turbocharger
  • Billet compressor wheel with extended tip design for higher pressure ratios
  • 58mm compressor wheel with GTX Gen II compressor aerodynamics
  • Journal bearing rotating group with 360-degree thrust bearing
  • Outline interchangeable with GBC37-900 for stage upgrades
  • Machined boost signal port with installed plug
  • Modern turbine wheel aerodynamics
  • Oil-cooled center housing
Product Specifications:
  • Compressor Wheel Inducer: 58mm
  • Compressor Wheel Exducer: 76mm
  • Compressor Wheel Trim: 58
  • Compressor Housing A/R: 0.72
  • Turbine Wheel Inducer: 68mm
  • Turbine Wheel Exducer: 62mm
  • Turbine Wheel Trim: 84

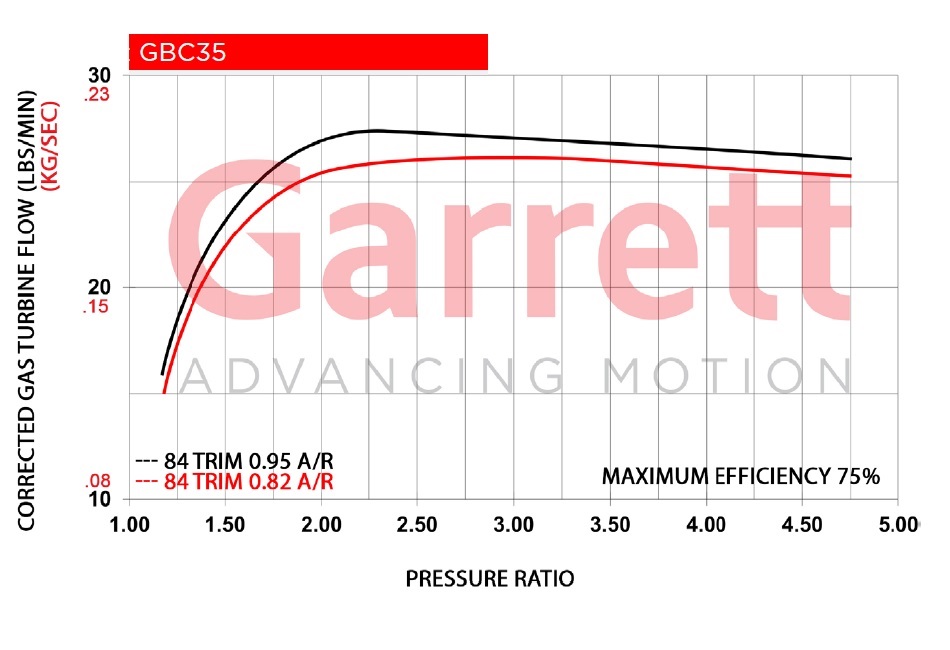

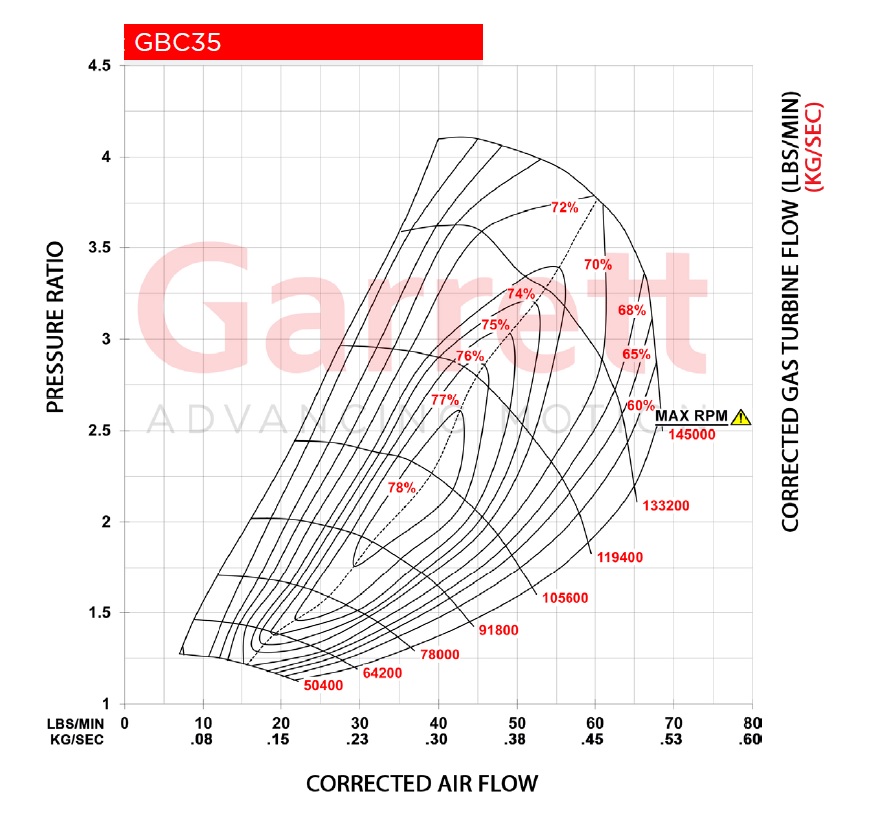

Coolant (Water) & Oil Fittings, Flanges, and Components Solutions: Compressor & Turbine Maps: Garrett Part Numbers:
  • 913840-5001S



Download PDF
