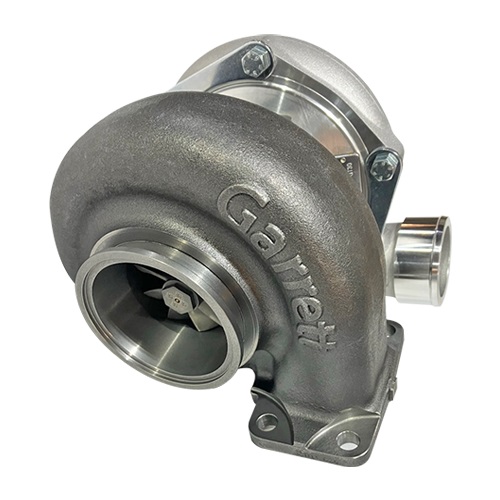

GARRETT Club Line GBC37-900 (67mm Comp Wheel) Turbo with T3 Open (Undivided) .82 A/R Turbine housing with 3” GT V-Band exit flange.

Product Features:

• The Garrett GBC37-900 turbocharger is a high performance journal bearing product in a cost effective price range. GBC combines modern, high flowing aerodynamics with a robust journal bearing rotating group to make a powerful and affordable turbocharger
• Billet compressor wheel with extended tip design for higher pressure ratios
• 67mm compressor wheel with GTX Gen II compressor aerodynamics
• Journal bearing rotating group with 360-degree thrust bearing
• Outline interchangeable with GBC35-700 for stage upgrades
• Machined boost signal port with installed plug
• Modern turbine wheel aerodynamics
• Oil-cooled center housing

Product Specifications:

• Compressor Wheel Inducer: 67mm
• Compressor Wheel Exducer: 84mm
• Compressor Wheel Trim: 64
• Compressor Housing A/R: 0.72
• Turbine Wheel Inducer: 73mm
• Turbine Wheel Exducer: 65mm
• Turbine Wheel Trim: 84

Coolant (Water) & Oil Fittings, Flanges, and Components Solutions:

• Oil feed flange (-4 AN with built-in Restrictor): ATP-FLA-040
• Oil feed gasket: GRT-GSK-011
• Oil drain flange: ATP-FLA-009 (Other oil drain flange options)
• Oil drain gasket: GRT-GSK-007


• Boost Pressure Port Fitting: ATP-FTG-198


• Gasket, T3 Turbine Inlet – OPEN / UNDIVIDED: GRT-GSK-005
• V-Band "GT" 3 Inch Outlet Flange (for Downpipe): Product Code:ATP-FLS-246
• V-Band Outlet Clamp: Product Code:CLC-CLA-048
NOTE: Alternate coolant and oil fittings and flanges are available.

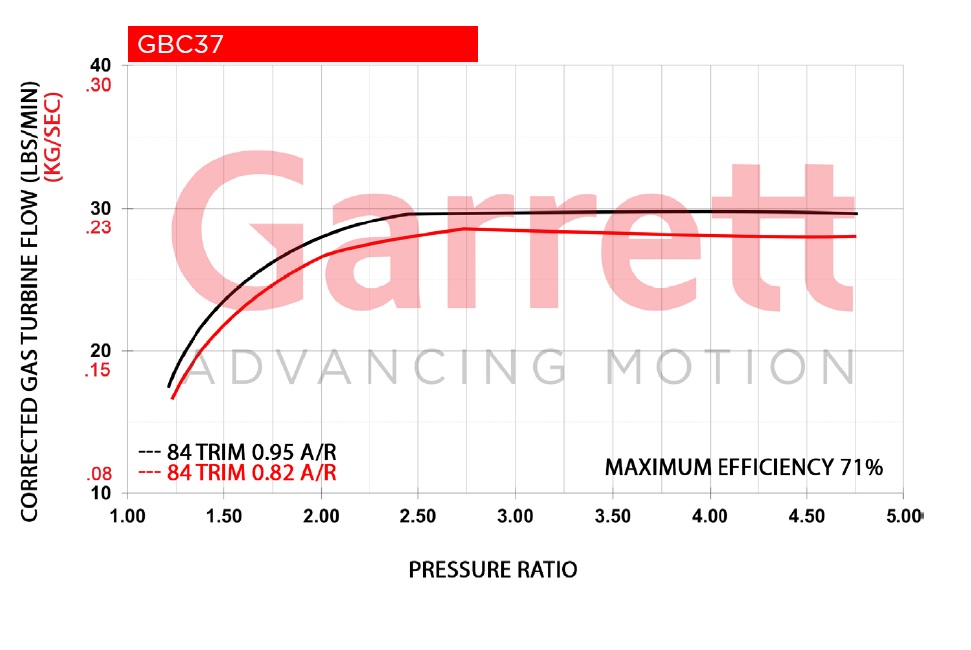

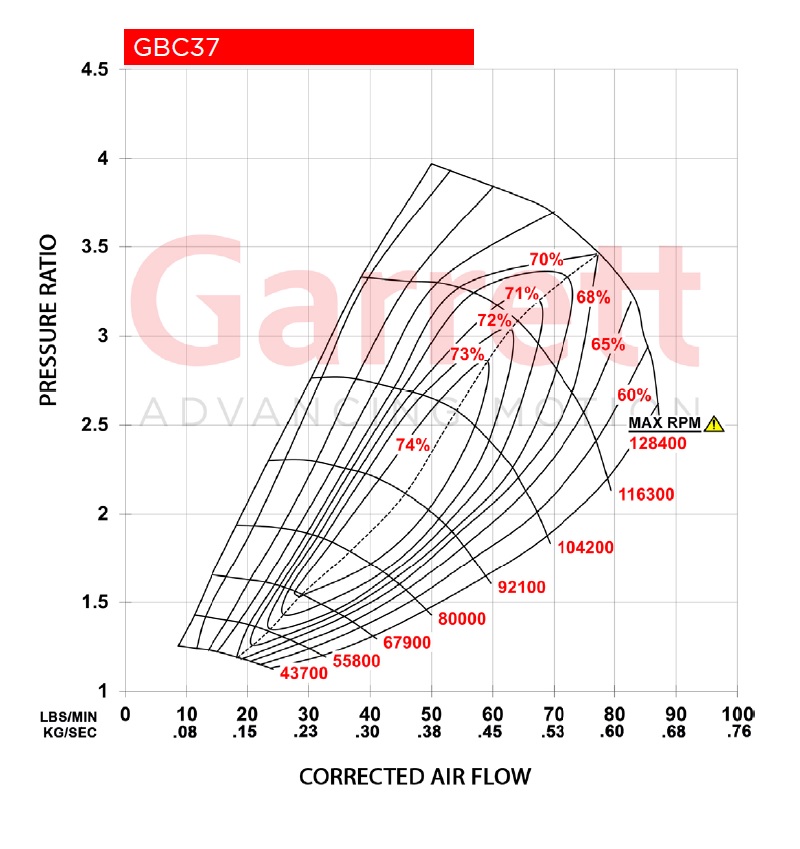

Compressor & Turbine Maps:

Garrett Part Numbers:

• 913840-5002S
• 740902-0126

Download PDF
