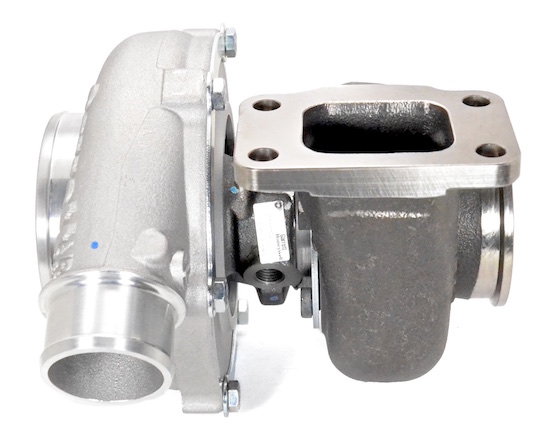

GEN2 - Garrett GTX3071R Turbo with 106 A/R T3 Turbine Housing w/3" GT VBAND conical exit w/81mm lip

Quantity in Basket: None
Code: GRT-TBO-771
Price: $2,363.73
Shipping Weight: 3.00 pounds

Quantity:

GEN2 - Garrett GTX3071R Turbo with 106 A/R T3 Turbine Housing w/3

Click to enlarge images

PRODUCT DESCRIPTION:
Garrett GEN2 GTX3071R dual ball bearing turbocharger, including T3 Inlet, 3 Inch "GT" V-Band Conical Outlet (81mm centering ring), 1.06 A/R Turbine Housing (ATP-HSG-044). Advanced GEN2 billet compressor wheel capable of 650HP!


PRODUCT FEATURES:
  • Advanced aerodynamics & ultra high flow Garrett GTX GEN2 compressor wheel
  • Forged billet aluminum compressor wheel
  • Dual ball bearing CHRA rotating assembly


  • PRODUCT SPECIFICATIONS:
  • Compressor Wheel Inducer: 54mm
  • Compressor Wheel Exducer: 71mm
  • Compressor Wheel Trim: 58
  • Compressor Housing A/R: 0.60
  • Turbine Wheel Inducer: 60mm
  • Turbine Wheel Exducer: 55mm
  • Turbine Wheel Trim: 84


  • COOLANT (WATER) & OIL FITTINGS, FLANGES, AND COMPONENTS SOLUTIONS:
  • Coolant - Water Options (Requires 2 units): 14mm Coolant Fitting & Lines
  • Oil feed options: -4 AN with built-in Restrictor (Product Code: ATP-OIL-021)
  • Oil drain flange: Product Code: ATP-FLA-010
  • Oil drain gasket: Product Code: GRT-GSK-008
  • 8mm x 1.25 (thread pitch) Stud: Product Code: MIA-FST-030
  • 8mm x 1.25 (thread pitch) Locking Head Nut: Product Code: MIA-FST-031

  • T3 Inlet Flange (for Turbo Manifold): Product Code:ATP-FLS-038
  • T3 Inlet Gasket: Product Code:GRT-GSK-005
  • V-Band "GT" 3 Inch Outlet Flange (for Downpipe): Product Code:ATP-FLS-246
  • V-Band Outlet Clamp: Product Code:CLC-CLA-048

  • NOTE: Alternate coolant and oil fittings and flanges are available.



    COMPRESSOR & TURBINE MAPS:



    APPLICABLE GARRETT PART NUMBERS:
  • Supercore P/N: 851154-5002S
  • Complete Turbo P/N: 856801-5004S
