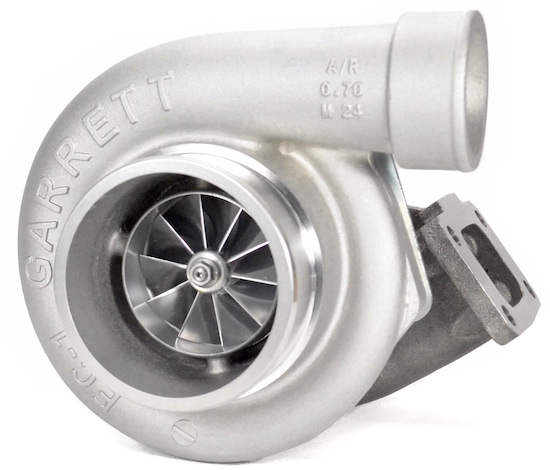

Garrett GTW3884JB (aka GTW6765JB), 67mm JB Turbo + T3 V-Band Turbine Hsg 1.06 A/R
Click to enlarge images
Garrett GTW3884JB (aka GTW6765JB), 67mm journal bearing turbo; T3 inlet, GT 3" V-Band Outlet, and 1.06 A/R Turbine Housing. 950HP potential flow.
GTW Series - Garrett's Performance solution to the popular 6766 size turbo. Great performance at a competitive price!
* Compressor Wheel Inducer: 67.3mm
* Compressor Wheel Exducer: 84.4mm
* Compressor Wheel Trim: 64
* Turbine Wheel Inducer: 74.2mm
* Turbine Wheel Exducer: 64.6mm
* Turbine Wheel Trim: 76
* Compressor Housing is T04S Frame with 4" inlet, 2.5" outlet, and built-in & machined anti-surge.
a direct drop-in replacement to the small frame Garrett GT or GTX Series turbochargers.
* External dimensions of the GTW Series bearing housing (CHRA) is physically larger (bulkier) than the Garrett GT and GTX series.
* GTW Series Journal Bearing CHRA
use same oil feed and oil return fittings as the small frame Garrett GT or GTX Series turbochargers.
OIL FITTINGS, FLANGES, AND COMPONENTS:
Oil feed flange:
Product Code: ATP-FLA-041 Oil feed gasket:
Product Code: ATP-GSK-026 Oil drain flange:
Product Code: ATP-FLA-042 Oil drain gasket:
Product Code: ATP-GSK-027 8mm x 1.25 (thread pitch) Bolts:
Product Code: MIA-FST-034 T3 Inlet Flange (for Turbo Manifold):
Product Code:ATP-FLS-038 T3 Inlet Gasket:
Product Code:GRT-GSK-005 GT 3" V-Band Flange (for Downpipe):
Product Code:ATP-FLS-246 3" V-Band Clamp:
Product Code:CLC-CLA-048 APPLICABLE GARRETT PART NUMBERS:
