Catalog Home > Turbos & Housings > Garrett GT - Ball Bearing > GT3582R With Special Housings

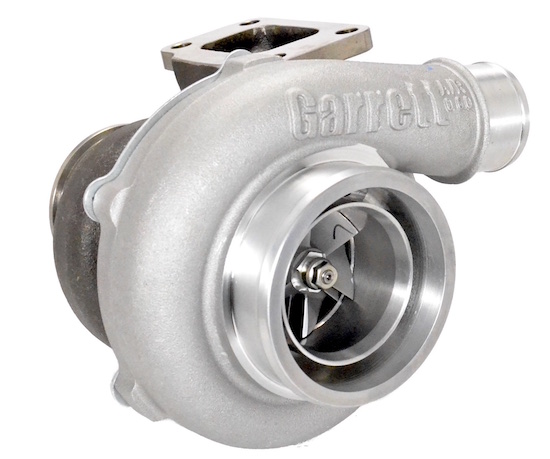

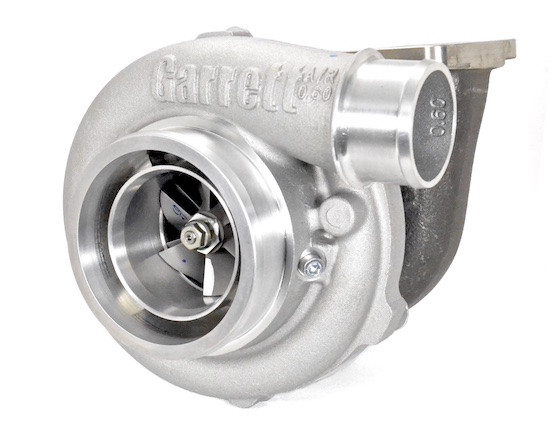

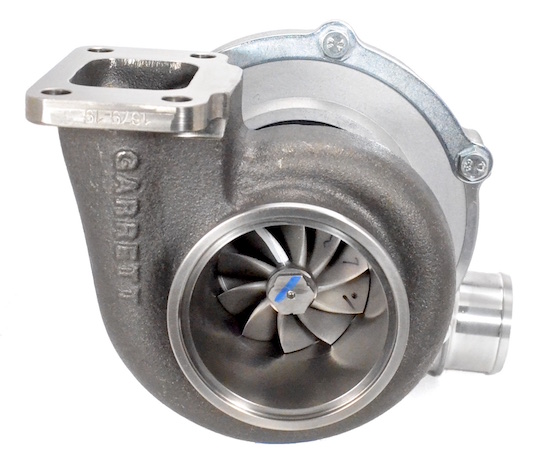

GT3582R Turbo w/ Gen2 Compact T04E Frame 4" in / 2.0" out Anti-Surge, .82 A/R T3 Undivided 3" GT VB

Quantity in Basket: None
Code: GRT-TBO-931
Price: $1,795.00
Shipping Weight: 3.00 pounds

Quantity:

GT3582R Turbo w/ Gen2 Compact T04E Frame 4


Click to enlarge images

PRODUCT DESCRIPTION:
Garrett ball bearing GT3582R (aka "GT35R" or "GT35/GT40R") with a Gen2 Compact T04E Frame .60 A/R compressor housing and a .82 A/R T3 undivided inlet and GT 3" V-Band Outlet Turbine Housing. Supports 650HP+ potential flow.

This GT3582R unit fits into tighter spaces AND features the latest comp housing with Gen2 Anti-Surge!

PRODUCT SPECIFICATIONS:
  • Compressor Wheel Inducer: 61.4mm
  • Compressor Wheel Exducer: 82mm
  • Compressor Wheel Trim: 56
  • Compressor Housing: 0.60 A/R, T04E Frame Ported Shroud 4" Inlet and 2.0" Outlet
  • Turbine Wheel Inducer: 68mm
  • Turbine Wheel Exducer: 62.3mm
  • Turbine Wheel Trim: 84
  • Turbine Housing: 0.82 A/R, T3 Undivided Inlet and GT 3" V-Band Outlet


  • COOLANT (WATER) & OIL FITTINGS, FLANGES, AND COMPONENTS SOLUTIONS:
  • Coolant - Water Options (Requires 2 units): 14mm Coolant Fitting & Lines
  • Oil feed options: -4 AN with built-in Restrictor (Product Code: ATP-OIL-021)
  • Oil drain flange: Product Code: ATP-FLA-010
  • Oil drain gasket: Product Code: GRT-GSK-008
  • 8mm x 1.25 (thread pitch) Stud: Product Code: MIA-FST-030
  • 8mm x 1.25 (thread pitch) Locking Head Nut: Product Code: MIA-FST-031

  • T3 Inlet Flange (for Turbo Manifold): Product Code:ATP-FLS-038
  • T3 Inlet Gasket: Product Code:GRT-GSK-005
  • GT 3" V-Band Outlet Flange (for Downpipe): Product Code:ATP-FLS-246
  • V-Band Clamp: Product Code:CLC-CLA-048

  • NOTE: Alternate coolant and oil fittings and flanges are available.

    COMPRESSOR & TURBINE MAPS:


    APPLICABLE GARRETT PART NUMBERS:
  • 714568-5010S
