Garrett GTW3476JB (aka GTW5857JB) - 58mm JB Turbo, .63 A/R, T3 Inlet, Welded GT 3" V-Band Outlet

Quantity in Basket: None
Code: GRT-TBO-B22
Price: $1,069.99
Shipping Weight: 3.00 pounds

Quantity:

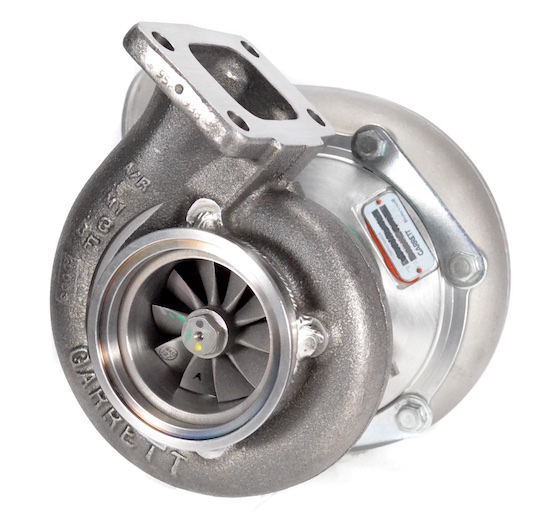

Garrett GTW3476JB (aka GTW5857JB) - 58mm JB Turbo, .63 A/R, T3 Inlet, Welded GT 3

Click to enlarge images


PRODUCT DESCRIPTION:
GTW3476JB (aka GTW5857JB) 58mm journal bearing turbo. 700HP potential flow. Includes .63 A/R, T3 Undivided Inlet, Welded GT 3" V-Band Outlet Turbine Housing.

GTW Series - Garrett's Performance solution to the popular 5858 size turbo. Great performance at a competitive price!


PRODUCT SPECIFICATIONS:
* Compressor Wheel Inducer: 58.3mm
* Compressor Wheel Exducer: 76.4mm
* Compressor Wheel Trim: 58
* Turbine Wheel Inducer: 65.0mm
* Turbine Wheel Exducer: 56.6mm
* Turbine Wheel Trim: 76


APPLICATION NOTES:
* NOT a direct drop-in replacement to the small frame Garrett GT or GTX Series turbochargers.
* External dimensions of the GTW Series bearing housing (CHRA) is physically larger (bulkier) than the Garrett GT and GTX series.
* GTW Series Journal Bearing CHRA DOES NOT use same oil feed and oil return fittings as the small frame Garrett GT or GTX Series turbochargers.


OIL FITTINGS, FLANGES, AND COMPONENTS:
* Oil feed flange: Product Code: ATP-FLA-041
* Oil feed gasket: Product Code: ATP-GSK-026
* Oil drain flange: Product Code: ATP-FLA-042
* Oil drain gasket: Product Code: ATP-GSK-027
* 8mm x 1.25 (thread pitch) Bolts: Product Code: MIA-FST-034


TURBINE HOUSING COMPONENTS:
  • T3 Inlet Flange (for Turbo Manifold): Product Code:ATP-FLS-038
  • T3 Inlet Gasket: Product Code:GRT-GSK-005
  • GT 3" V-Band Flange (for Downpipe): Product Code:ATP-FLS-246
  • 3" V-Band Clamp: Product Code:CLC-CLA-048



  • APPLICABLE GARRETT PART NUMBERS:
  • 715582-5005S
  • 841297-5001S
