GEN2 Garrett GTX3076R, Compact Comp Hsg, Stainless .86 AR T25 IWG 5 Bolt Turbine Hsg, 1 Bar Actuator

Quantity in Basket: None
Code: GRT-TBO-B35
Price: $2,415.34
Shipping Weight: 8.00 pounds

Quantity:


Optional Selection: Convert T25 Turbine Housing Entry to VB25 (V-Band)

Optional Selection: Exclude the actuator (-$35 credit)

Optional Selection: Full Size Gen2 GTX3076R Compressor Housing with 4" inlet and anti-surge

Optional Actuator: Lower Pressure .5 bar actuator
GEN2 Garrett GTX3076R, Compact Comp Hsg, Stainless .86 AR T25 IWG 5 Bolt Turbine Hsg, 1 Bar Actuator


PRODUCT DESCRIPTION:
    Garrett Gen2 GTX3076R dual ball bearing turbocharger with compact compressor housing & stainless .86 AR T25 IWG 5 bolt turbine housing with a 1 bar actuator. Advanced GEN2 billet compressor wheel capable of 750HP!

    The Garrett GEN2 GTX3076R fits turbine housings for Garrett GT30 (standard size) and GTX30 series turbochargers with a 60mm inducer and 84 trim turbine wheel.
PRODUCT FEATURES:
  • Advanced aerodynamics & ultra high flow Garrett GTX GEN2 compressor wheel
  • Forged billet aluminum compressor wheel
  • Dual ball bearing CHRA rotating assembly
PRODUCT SPECIFICATIONS:
  • Compressor Wheel Inducer: 58mm
  • Compressor Wheel Exducer: 76mm
  • Compressor Wheel Trim: 58
  • Compressor Housing A/R: 0.60
  • Turbine Wheel Inducer: 60mm
  • Turbine Wheel Exducer: 55mm
  • Turbine Wheel Trim: 84
COMPRESSOR HOUSING OPTIONS:
  • T04E Frame, 4 inch inlet, 2 inch outlet, and machined ported shroud (standard/default option)

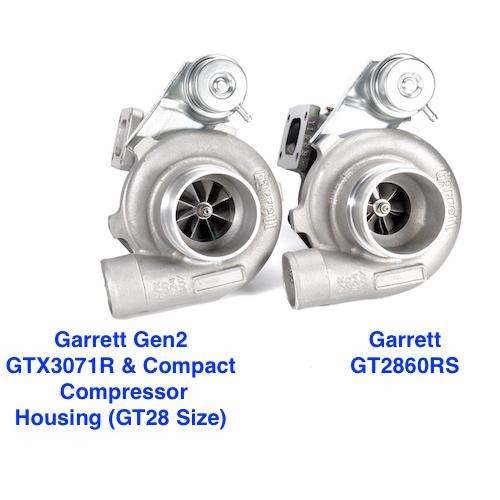

  • T04B Frame, 3 inch inlet and 2 inch outlet (Alternate compact option, same layout as GT2860RS/GT2871R)
TURBINE HOUSING OPTIONS:
  • Ni-Resist V-Band Inlet & Outlet. Available in .61, .83 or 1.01 A/R
ALTERNATIVE TURBINE HOUSING OPTIONS: COOLANT (WATER) & OIL FITTINGS, FLANGES, AND COMPONENTS SOLUTIONS: COMPRESSOR & TURBINE MAPS: APPLICABLE GARRETT PART NUMBERS:
  • 851154-5001S
  • 856801-5037S
  • 856801-5038S
  • 856801-5039S
