Catalog Home > Turbos & Housings > Garrett GT - Ball Bearing > GT Turbos With Special Turbine Housings > GT2860RS With Special Housings

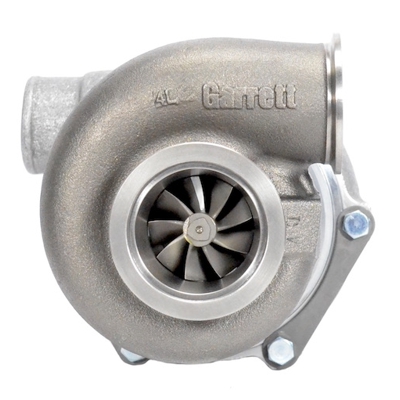

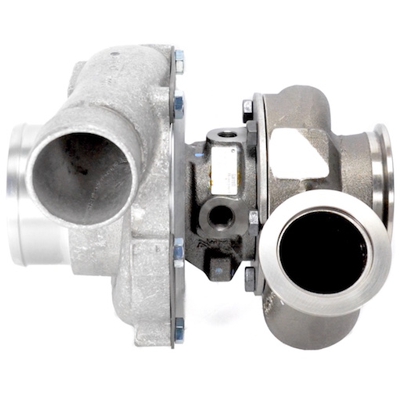

Garrett GT2860RS with .57 A/R compact V-band Turbine Hsg

Quantity in Basket: None
Code: GRT-TBO-G91
Price: $1,175.00
Shipping Weight: 3.00 pounds

Quantity:

Garrett GT2860RS with .57 A/R compact V-band Turbine Hsg



Product Description:
    Garrett GT2860RS turbo with .57 A/R compact v-band turbine housing. Standard T04B 3" inlet and 2" outlet Compressor Housing.

    Dual Ball Bearing GT2860RS turbo is great for small displacement engines up to 2.2L and has the ultimate spool up time compared to other units. This turbo has a flow capacity of about 350HP.
Product Specifications:
  • Compressor Wheel Exducer: 60 mm
  • Compressor Wheel Trim: 62
  • Turbine Wheel Exducer: 53.85 mm
  • Turbine Wheel Trim: 76 trim
Coolant (Water) & Oil Fittings, Flanges, and Components Solutions: Compressor & Turbine Maps: Applicable Garrett Part Numbers:
  • 836026-5009S
  • 836026-5010S
