Catalog Home > Turbos & Housings > Garrett GTX Gen2 > Garrett GTX3576R Gen2 Variants > GEN2 GTX3576R with T3 Housings

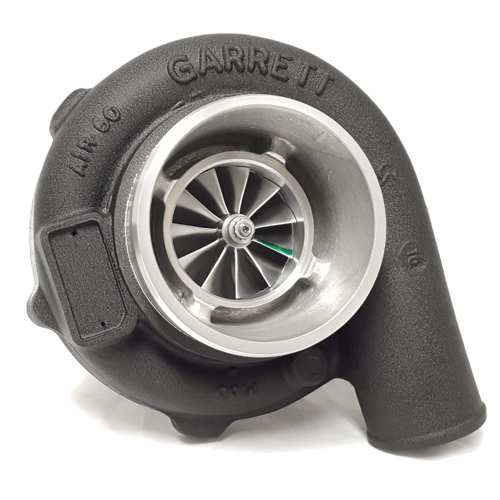

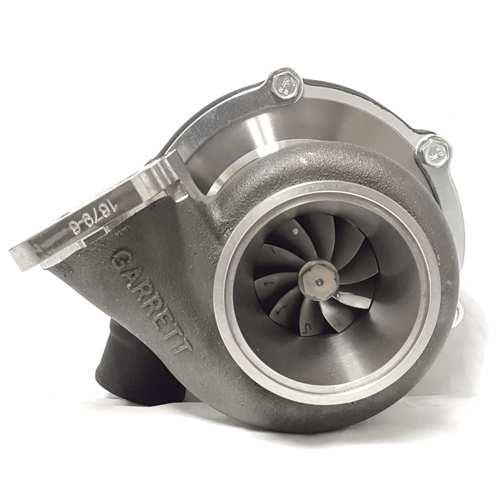

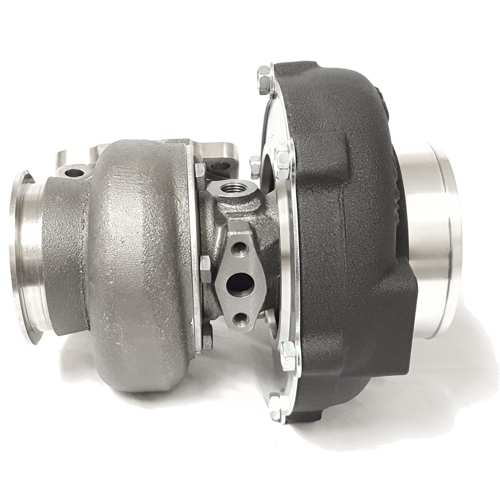

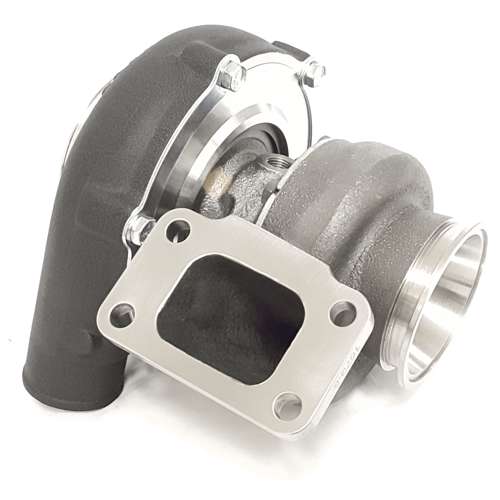

Black, Gen 2 GTX3576R DBB Turbo w/ 1.06 A/R T3 Tbn Hsg "GT Vband 3" conical exit with 81mm lip

Quantity in Basket: None
Code: GRT-TBO-J74
Price: $2,944.41
Shipping Weight: 8.00 pounds

Quantity:

Black, Gen 2 GTX3576R DBB Turbo w/ 1.06 A/R T3 Tbn Hsg



Product Description:
    Black Garret Gen II GTX3576R dual ball bearing turbo with a 1.06 A/R T3 "GT Vband 3" conical exit (81mm lip) turbine housing. Advanced GEN II billet compressor wheel capable of 750HP!
Product Features:
  • Advanced aerodynamics & ultra high flow Garrett GTX GEN II compressor wheel
  • Forged billet aluminum compressor wheel
  • Dual ball bearing CHRA rotating assembly
Product Specifications:
  • Compressor Wheel Inducer: 58mm
  • Compressor Wheel Exducer: 76mm
  • Compressor Wheel Trim: 58
  • Compressor Housing: 0.60 A/R
  • Turbine Wheel Inducer: 68mm
  • Turbine Wheel Exducer: 62mm
  • Turbine Wheel Trim: 84
Coolant (Water) & Oil Fittings, Flanges, and Components Solutions: Compressor & Turbine Maps: Applicable Garrett P/N's:
  • 851154-5003S
