Catalog Home > Turbos & Housings > Garrett GT - Ball Bearing > GT Turbos With Special Turbine Housings > GT2971R With Special Housings

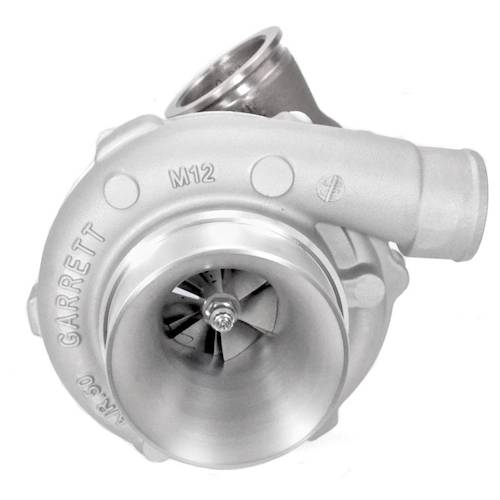

Turbocharger, Garrett GT2971R-90T (90 trim 56.5mm turbine), 4" in /2" OUT w/ .61AR UND VBand in/out

Quantity in Basket: None
Code: GRT-TBO-K84
Price: $1,375.00
Shipping Weight: 3.00 pounds

Quantity:

Turbocharger, Garrett GT2971R-90T (90 trim 56.5mm turbine), 4



Product Description:
    Garrett dual ball bearing GT2971R-90T (90 trim 56.5mm Turbine) 4" in / 2" out turbocharger with a .61 A/R Garrett undivided v-band in/out turbine housing.

    This turbo is great for small displacement engines up to 2.2L and has the ultimate spool up time compared to other units. This turbo has a flow capacity of about 450HP.
Product Features:
  • Genuine Garrett GT Aero compressor wheel
  • Genuine Garrett GT Inconel turbine wheel
  • Dual ball bearing CHRA rotating assembly
Product Specifications:
  • Compressor Wheel Inducer: 53.1mm
  • Compressor Wheel Exducer: 71mm
  • Compressor Wheel Trim: 90
  • Turbine Wheel Inducer: 56.5mm
  • Turbine Wheel Exducer: 52mm
  • Turbine Wheel Trim: 90
Coolant (Water) & Oil Fittings, Flanges, and Components Solutions: Garrett Part Numbers:
  • 836027-5002S
