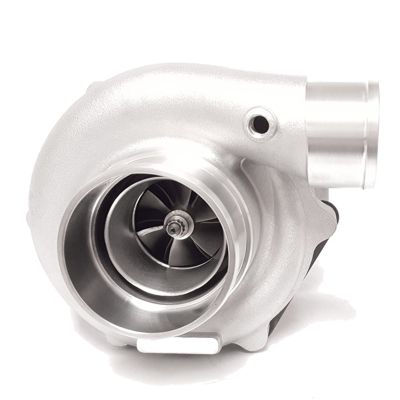

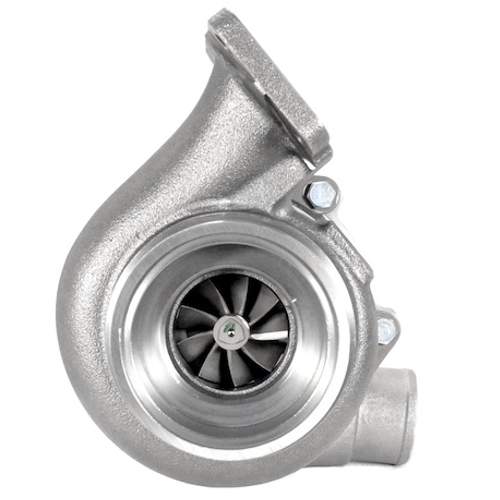

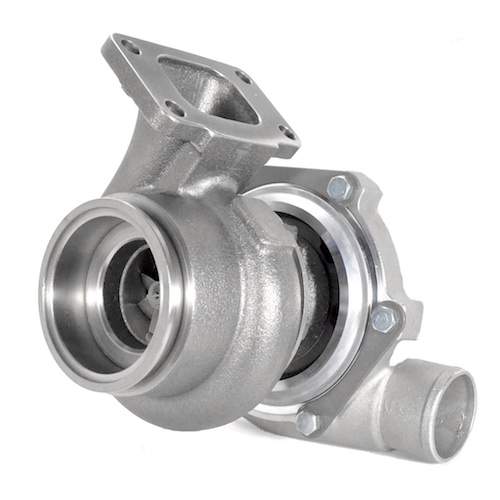

Turbocharger, Garrett GT3071R (compact 475HP), 3" anti-surge, .48 A/R T3 und GT VB 3" out
Quantity in Basket:
None
Code:
GRT-TBO-L22
Price:
$1,649.00
Shipping Weight:
3.00 pounds
Product Description:
Garrett GT3071R (compact 475HP) dual ball bearing 3" anti-surge compressor housing turbocharger with .48 A/R T3 undivided GT v-band 3" exit turbine housing. 475+HP potential flow.
Product Features:
- Genuine Garrett GT Aero compressor wheel
- Genuine Garrett GT Inconel turbine wheel
- Dual ball bearing CHRA rotating assembly
Product Specifications:
- Compressor Wheel Inducer: 53mm
- Compressor Wheel Exducer: 71mm
- Turbine Wheel Inducer: 60mm
- Turbine Wheel Exducer: 55mm
Coolant (Water) & Oil Fittings, Flanges, and Components Solutions:
Compressor & Turbine Maps:
