Catalog Home > Turbos & Housings > Garrett GT - Ball Bearing > GT3582R With Special Housings

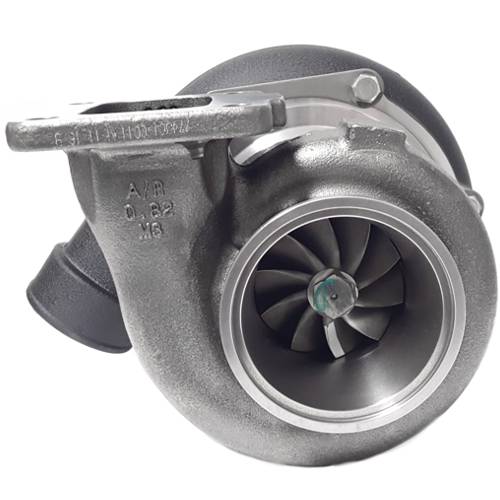

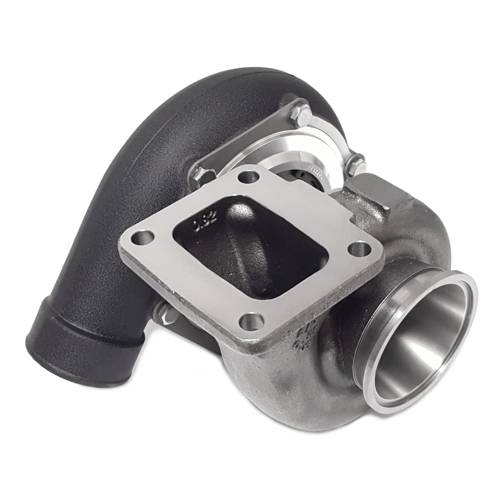

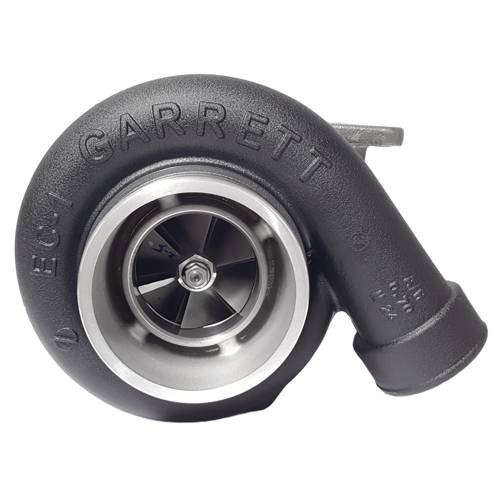

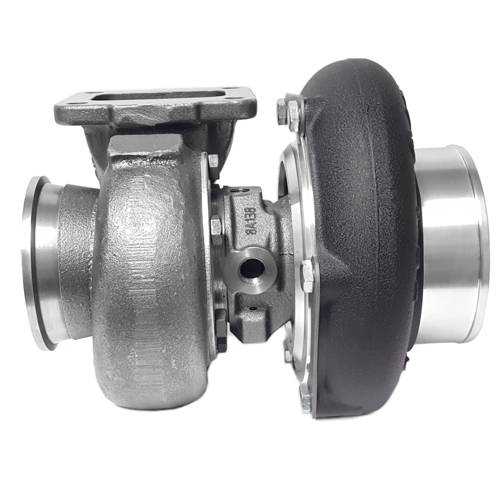

Turbocharger, Garrett GT3582R, Black, T4 Undivided, Anti-surge, .63 A/R 3" GTVB Exit

Quantity in Basket: None
Code: GRT-TBO-L82
Price: $1,778.00
Shipping Weight: 3.00 pounds

Quantity:

Turbocharger, Garrett GT3582R, Black, T4 Undivided, Anti-surge, .63 A/R 3

Product Description:
    BLACK, Garrett ball bearing GT3582R anti-surge turbocharger with a .63 A/R T4 undivided inlet and GT 3" v-band outlet turbine Housing. Supports 650HP+ potential flow.
Product Specifications:
  • Compressor Wheel Inducer: 61.4mm
  • Compressor Wheel Exducer: 82mm
  • Compressor Wheel Trim: 56
  • Compressor Housing: 0.70 A/R, T04S Frame 4" Inlet and 2.5" Outlet
  • Turbine Wheel Inducer: 68mm
  • Turbine Wheel Exducer: 62.3mm
  • Turbine Wheel Trim: 84
Coolant (water) & Oil Fittings, Flanges, and Components Solutions: Compressor & Turbine Maps: Applicable Garrett Part Numbers:
  • 815113-5002S
  • 836033-5002S
