Quantity in Basket:
None
Code: GRT-TBO-G40
Price: $1,614.99
Shipping Weight: 3.00 pounds
Product Description:

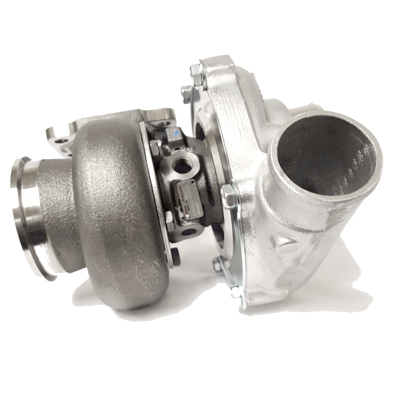

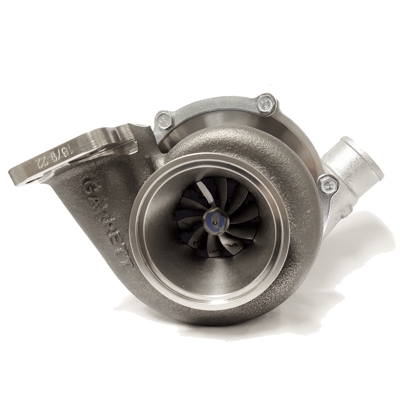

Garrett GT3582R turbo with T04S frame 4" in / 2.5" out with .63 A/R T3 "GT VBAND 3" exit and 81mm lip turbine housing. Supports 650HP+ potential flow.
Product Specifications:
- Compressor Wheel Inducer: 61.4mm
- Compressor Wheel Exducer: 82mm
- Compressor Wheel Trim: 56
- Compressor Housing: 0.70 A/R
- Turbine Wheel Inducer: 68mm
- Turbine Wheel Exducer: 62.3mm
- Turbine Wheel Trim: 84
Coolant (Water) & Oil Fittings, Flanges, and Components Solutions:
- Coolant - Water Options (Requires 2 units): 14mm Coolant Fitting & Lines
- Oil feed options: -4 AN with built-in Restrictor - Product Code: ATP-OIL-021)
- Oil drain flange - Product Code: ATP-FLA-010
- Oil drain gasket - Product Code: GRT-GSK-008
- T3 Inlet Weld Flange (Stainless Steel)- Product Code: ATP-FLS-038 (ATP-FLS-001 -mild steel)
- Gasket, T3 Turbine Inlet - UNDIVIDED - Product Code: GRT-GSK-005
- Flange, 3" GT V-Band w/ 81mm protruded lip (Stainless Steel)- Product Code: ATP-FLS-246
- Clamp, v-band downpipe side - Product Code: CLC-CLA-048
NOTE: Alternate coolant and oil fittings and flanges are available.
Compressor & Turbine Maps:
Applicable Garrett Part Numbers:
|
